Sampling using a valve fitted with a heating jacket
The heating jacket on a sampling valve is used to heat the fluid or maintain its temperature during sampling.
VLB‐EC
- Inline sampling valve with heating jacket
- With flanges
- Vertical assembly
- Multifonctional
Material 1.4404 / 316L PTFE
Pressures PN 16 / 40 ANSI 150# / 300#
Temperatures -40°C / 200°C -40°F / 400°F
The VLB-EC sampling valve, specially designed for vertical lines, offers a practical and safe solution for taking representative samples of temperature-sensitive chemicals, without disrupting ongoing manufacturing processes. Thanks to its integrated heating jacket, the VLB-EC valve ensures sampling at a constant temperature, prevents solidification of the sampled liquids and maintains their viscosity. It also preserves the integrity of the production line. Originally manufactured in stainless steel, the valve is also available in Hastelloy. Its unique quick connection system allows a variety of bottles and accessories to be used without having to change the sampling system, simplifying management and reducing costs. The VLB-EC sampling system, known as PRISEMASSON®, is based on a modular concept, enabling it to be adapted to different requirements and needs, whether in terms of materials, sealing or actuators.
TECHNICAL DETAILS OF A VLB-EC INLINE SAMPLING VALVE

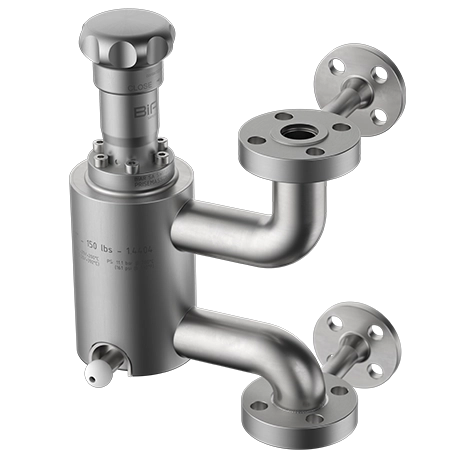

Illustrative drawing of a standard VLB-EC sampling valve, without additional options, featuring the VMB magic wheel actuator type
Dimensions in mm
Your specificities
Standard
- DIN
- ANSI
Class
- 16
- 40
- 150
- 300
| NrArticle | DN | L | l1 | h1 | h2 | s | d1 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| xxxxxx | 15 | 250 | 170 | 187 | 36 | 1.6 | 18.1 | 95 | 65 | 4x14 | 12.3 |
| xxxxxx | 25 | 263 | 170 | 187 | 44 | 2 | 29.7 | 115 | 85 | 4x14 | 13.5 |
| xxxxxx | 32 | 278 | 170 | 187 | 50 | 2 | 38.4 | 140 | 100 | 4x18 | 14.3 |
| xxxxxx | 40 | 296 | 210 | 187 | 59 | 2 | 44.3 | 150 | 110 | 4x18 | 15.3 |
| xxxxxx | 50 | 329 | 210 | 187 | 59 | 2.6 | 55.1 | 165 | 125 | 4x18 | 16.7 |
| xxxxxx | 80 | 442 | 240 | 249 | 105 | 2.6 | 83.7 | 200 | 160 | 8x18 | 27.0 |
| xxxxxx | 100 | 541 | 290 | 306 | 290 | 2.6 | 109.1 | 220 | 180 | 8x18 | 37.6 |
| NrArticle | DN | L | l1 | h1 | h2 | s | d1 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 03652700 | 15 | 250 | 170 | 187 | 36 | 1.6 | 18.1 | 95 | 65 | 4x14 | 12.3 |
| 04616500 | 25 | 263 | 170 | 187 | 44 | 2 | 29.7 | 115 | 85 | 4x14 | 13.5 |
| xxxxxx | 32 | 278 | 170 | 187 | 50 | 2 | 38.4 | 140 | 100 | 4x18 | 14.3 |
| 01774102 | 40 | 296 | 210 | 187 | 59 | 2 | 44.3 | 150 | 110 | 4x18 | 15.3 |
| 03973401 | 50 | 329 | 210 | 187 | 59 | 2.6 | 55.1 | 165 | 125 | 4x18 | 16.7 |
| xxxxxx | 80 | 442 | 240 | 249 | 105 | 2.6 | 83.7 | 200 | 160 | 8x18 | 27.0 |
| xxxxxx | 100 | 541 | 290 | 306 | 290 | 2.6 | 109.1 | 235 | 190 | 8x22 | 37.6 |
| NrArticle | NPS | L | l1 | h1 | h2 | s | d1 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| xxxxxx | 1/2 | 268 | 170 | 179 | 44 | 1.6 | 18.1 | 89 | 60.5 | 4x15.7 | 9.6 |
| 01800401 | 1 | 296 | 170 | 179 | 52 | 2 | 29.7 | 108 | 79.2 | 4x15.7 | 9.9 |
| 04013800 | 1 1/2 | 332 | 210 | 179 | 67 | 2 | 44.3 | 127 | 98.6 | 4x15.7 | 14.9 |
| 02179600 | 2 | 365 | 210 | 179 | 67 | 2.6 | 55.1 | 152 | 120.7 | 4x19.1 | 17.9 |
| 02796500 | 3 | 478 | 240 | 241 | 113 | 2.6 | 83.7 | 190 | 152.4 | 4x19.1 | 22.5 |
| 02280400 | 4 | 599 | 290 | 298 | 298 | 2.6 | 109.1 | 229 | 190.5 | 8x19.1 | 26.5 |
| NrArticle | NPS | L | l1 | h1 | h2 | s | d1 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| xxxxxx | 1/2 | 268 | 170 | 179 | 44 | 1.6 | 18.1 | 95 | 66.6 | 4x15.7 | 9.6 |
| 03106700 | 1 | 296 | 170 | 179 | 52 | 2 | 29.7 | 124 | 88.9 | 4x19.1 | 9.9 |
| xxxxxx | 1 1/2 | 332 | 210 | 179 | 67 | 2 | 44.3 | 127 | 98.6 | 4x22.4 | 14.9 |
| xxxxxx | 2 | 365 | 210 | 179 | 67 | 2.6 | 55.1 | 165 | 127 | 8x19.1 | 17.9 |
| xxxxxx | 3 | 478 | 240 | 241 | 113 | 2.6 | 83.7 | 210 | 168.1 | 8x22.4 | 22.5 |
| xxxxxx | 4 | 599 | 290 | 298 | 298 | 2.6 | 109.1 | 254 | 200.2 | 8x22.4 | 26.5 |
Pressures and temperatures
| °C | 20° | 100° | 150° | 200° | |
|---|---|---|---|---|---|
| Vanne (Pression max.) bar | 16 | 15.1 | 13.7 | 12.7 | |
| Enveloppe chauffante (pression max.) bar | 16 | 15.1 | 13.7 | 12.7 |
| °C | 20° | 100° | 150° | 200° | |
|---|---|---|---|---|---|
| Vanne (Pression max.) bar | 16 | 16 | 16 | 16 | |
| Enveloppe chauffante (pression max.) bar | 40 | 37.9 | 34.4 | 31.8 |
| °F / (°C) | <100° (<40°) | 200° (100°) | 300° (150°) | 400° (200°) | |
|---|---|---|---|---|---|
| Vanne (Pression max.) psi (bar) | 217.6 (15.9) | 188.5 (13.3) | 174 (12) | 159.5 (11.2) | |
| Enveloppe chauffante (pression max.) psi (bar) | 217.6 (15.9) | 188.5 (13.3) | 174 (12) | 159.5 (11.2) |
| °F / (°C) | <100° (<40°) | 200° (100°) | 300° (150°) | 400° (200°) | |
|---|---|---|---|---|---|
| Vanne (Pression max.) psi (bar) | 232.1 (16) | 232.1 (16) | 232.1 (16) | 232.1 (16) | |
| Enveloppe chauffante (pression max.) psi (bar) | 594.7 (41.4) | 493.1 (34.8) | 449.6 (31.4) | 420.6 (29.2) |

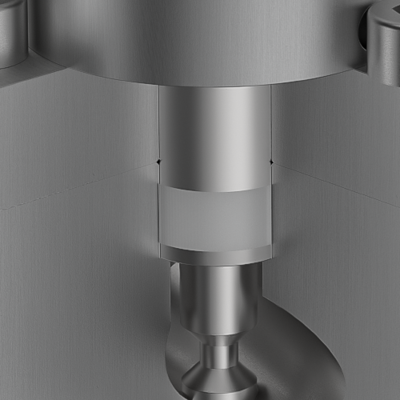

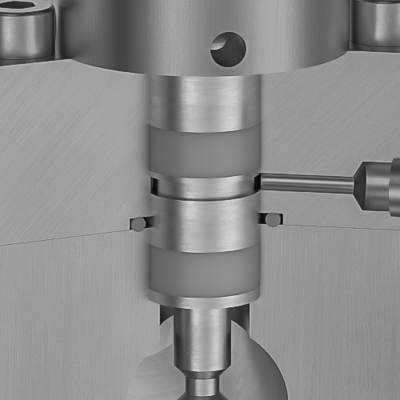

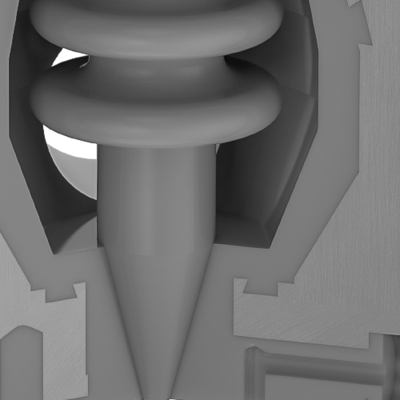

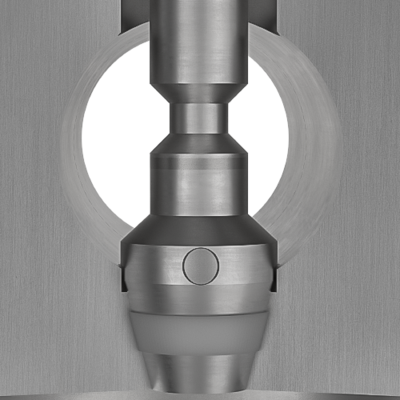

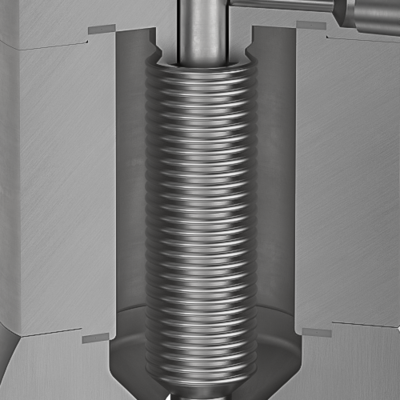

Each VLB-EC Inline sampling valve can be configured according to production specifications and sampling parameters.
VLB-EC body can be designed in various alloys
In its standard version, the VLB-EC sampling valves is made from stainless steel. It is also available in Hastelloy®
1.4404 / 316L
Vent hole principle
The venting hole fitted to each VLB-EC sampling valve prevents overpressure and explosions.
It can be connected in different ways
Vent hole principle
The vent hole in our sampling systems prevents overpressure in the container and allows for the recovery of toxic gases.
NITROGEN RINSING THROUGH THE SPINDLE
If bottle rinsing is required, the VLB-EC samplers can be configured with the nitrogen flushing option
NITROGEN RINSING THROUGH THE SPINDLE
If bottle rinsing is required, the ECB samplers can be configured with the nitrogen flushing option
Inline sampling valves
BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
