Sampling using a valve fitted with a heating jacket
The heating jacket on a sampling valve is used to heat the fluid or maintain its temperature during sampling.

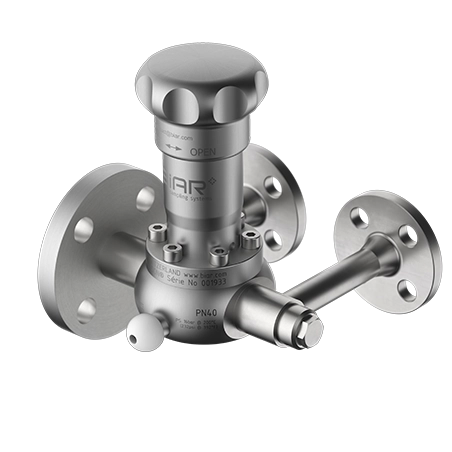

LLB‐EC
- Inline sampling valve with heating jacket
- With flanges
- Lateral assembly
- Multifonctional
Material 1.4404 / 316L 2.4602 / C22
Pressures PN 16 / 40 ANSI 150# / 300#
Temperatures -40°C / 200°C -40°F / 400°F
The LLB-EC sampling valve, specifically designed for vertical installations, offers a practical and safe solution for representative sampling of temperature-sensitive chemicals, without disrupting ongoing manufacturing processes. Equipped with an integrated heating jacket, the LLB-EC valve guarantees sampling at a constant temperature, prevents solidification of the sampled liquids and maintains their viscosity, thus preserving the integrity of the production line. Initially designed in stainless steel, this sampling system is also available in Hastelloy. Its ingenious quick connection system means you can use different bottles and accessories without having to change the sampling system, simplifying management and reducing operating costs. The LLB-EC sampling system, better known as PRISEMASSON®, is based on a modular concept, making it highly adaptable to different requirements and needs, whether in terms of materials, sealing or actuators.
TECHNICAL DETAILS OF A LLB-EC INLINE SAMPLING VALVE
Illustrative drawing of a standard LLB-EC sampling valve, without additional options, featuring the VMB magic wheel actuator type
Dimensions in mm
Your specificities
Standard
- DIN
- ANSI
Class
- 16
- 40
- 150
- 300
| NrArticle | DN | L1 | L2 | L3 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|
| xxxxxx | 15 | 100 (i) | 100 (i) | 96 (i) | 95 | 65 | 4x14 | 7.5 |
| xxxxxx | 20 | 100 (i) | 100 (i) | 96 (i) | 105 | 75 | 4x14 | 8.1 |
| xxxxxx | 25 | 100 (i) | 100 (i) | 96 (i) | 115 | 85 | 4x14 | 9.5 |
| xxxxxx | 32 | 100 (i) | 100 (i) | 96 (i) | 140 | 100 | 4x18 | 8 |
| xxxxxx | 40 | 100 (i) | 100 (i) | 96 (i) | 150 | 110 | 4x18 | 9.8 |
| 04223000 | 50 | 100 (i) | 100 (i) | 96 (i) | 165 | 125 | 4x18 | 10.1 |
| xxxxxx | 65 | 100 (i) | 100 (i) | 96 (i) | 185 | 145 | 8(4)x18 | 10.3 |
| xxxxxx | 80 | 100 (i) | 100 (i) | 96 (i) | 200 | 160 | 8x18 | 12.1 |
| xxxxxx | 100 | 100 (i) | 100 (i) | 96 (i) | 220 | 180 | 8x18 | 15.9 |
| NrArticle | DN | L1 | L2 | L3 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|
| 04537400 | 15 | 100 (i) | 100 (i) | 96 (i) | 95 | 65 | 4x14 | 7.5 |
| xxxxxx | 20 | 100 (i) | 100 (i) | 96 (i) | 105 | 75 | 4x14 | 8.1 |
| xxxxxx | 25 | 100 (i) | 100 (i) | 96 (i) | 115 | 85 | 4x14 | 9.5 |
| xxxxxx | 32 | 100 (i) | 100 (i) | 96 (i) | 140 | 100 | 4x18 | 8 |
| xxxxxx | 40 | 100 (i) | 100 (i) | 96 (i) | 150 | 110 | 4x18 | 9.8 |
| 04223000 | 50 | 100 (i) | 100 (i) | 96 (i) | 165 | 125 | 4x18 | 10.1 |
| xxxxxx | 65 | 100 (i) | 100 (i) | 96 (i) | 185 | 145 | 8x18 | 10.3 |
| xxxxxx | 80 | 100 (i) | 100 (i) | 96 (i) | 200 | 160 | 8x18 | 12.1 |
| xxxxxx | 100 | 100 (i) | 100 (i) | 96 (i) | 235 | 190 | 8x22 | 15.9 |
| NrArticle | NPS | L1 | L2 | L3 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|
| xxxxxx | 1/2 | 100 (i) | 100 (i) | 96 (i) | 89 | 60.5 | 4x15.7 | 6.9 |
| 03069300 | 3/4 | 100 (i) | 100 (i) | 96 (i) | 98 | 69.9 | 4x15.7 | 7.3 |
| 04666601 | 1 | 100 (i) | 100 (i) | 96 (i) | 108 | 79.2 | 4x15.7 | 7.5 |
| xxxxxx | 1 1/4 | 100 (i) | 100 (i) | 96 (i) | 117 | 88.9 | 4x15.7 | 8.3 |
| 05091200 | 1 1/2 | 100 (i) | 100 (i) | 96 (i) | 127 | 98.6 | 4X15.7 | 8.7 |
| xxxxxx | 2 | 100 (i) | 100 (i) | 96 (i) | 152 | 121 | 4x19.1 | 9.9 |
| xxxxxx | 2 1/2 | 100 (i) | 100 (i) | 96 (i) | 178 | 140 | 4x19.1 | 10.8 |
| xxxxxx | 3 | 100 (i) | 100 (i) | 96 (i) | 190 | 152 | 4x19.1 | 12.7 |
| xxxxxx | 4 | 100 (i) | 100 (i) | 96 (i) | 229 | 191 | 8x19.1 | 15.9 |
| NrArticle | NPS | L1 | L2 | L3 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|
| xxxxxx | 1/2 | 100 (i) | 100 (i) | 96 (i) | 95 | 66.6 | 4x15.7 | 6.9 |
| 04117800 | 3/4 | 100 (i) | 100 (i) | 96 (i) | 117 | 82.6 | 4x19.1 | 7.3 |
| 03075800 | 1 | 100 (i) | 100 (i) | 96 (i) | 124 | 88.9 | 4x19.1 | 7.5 |
| xxxxxx | 1 1/4 | 100 (i) | 100 (i) | 96 (i) | 133 | 98.6 | 4x19.1 | 8.3 |
| xxxxxx | 1 1/2 | 100 (i) | 100 (i) | 96 (i) | 156 | 114.3 | 4x22.4 | 8.7 |
| xxxxxx | 2 | 100 (i) | 100 (i) | 96 (i) | 165 | 127 | 8x19.1 | 9.9 |
| xxxxxx | 2 1/2 | 100 (i) | 100 (i) | 96 (i) | 190 | 149.4 | 8x22.4 | 10.8 |
| xxxxxx | 3 | 100 (i) | 100 (i) | 96 (i) | 210 | 168.1 | 8x22.4 | 12.7 |
| xxxxxx | 4 | 1100 (i) | 100 (i) | 96 (i) | 254 | 200.2 | 8x22.4 | 15.9 |
Pressures and temperatures
| °C | 20° | 100° | 150° | 200° |
|---|---|---|---|---|
| Vanne (Pression max.) bar | 16 | 15.1 | 13.7 | 12.7 |
| Enveloppe chauffante (pression max.) bar | 16 | 15.1 | 13.7 | 12.7 |
| °C | 20° | 100° | 150° | 200° |
|---|---|---|---|---|
| Vanne (Pression max.) bar | 16 | 16 | 16 | 16 |
| Enveloppe chauffante (pression max.) bar | 40 | 37.9 | 34.4 | 31.8 |
| °F / (°C) | <100° (<40°) | 200° (100°) | 300° (150°) | 400° (200°) | |
|---|---|---|---|---|---|
| Vanne (Pression max.) psi (bar) | 217.6 (15.9) | 188.5 (13.3) | 174 (12) | 159.5 (11.2) | |
| Enveloppe chauffante (pression max.) psi (bar) | 217.6 (15.9) | 188.5 (13.3) | 174 (12) | 159.5 (11.2) |
| °F / (°C) | <100° (<40°) | 200° (100°) | 300° (150°) | 400° (200°) | |
|---|---|---|---|---|---|
| Vanne (Pression max.) psi (bar) | 232.1 (16) | 232.1 (16) | 232.1 (16) | 232.1 (16) | |
| Enveloppe chauffante (pression max.) psi (bar) | 594.7 (41.4) | 493.1 (34.8) | 449.6 (31.4) | 420.6 (29.2) |
Each LLB-EC Inline sampling valve can be configured according to production specifications and sampling parameters.
LLB-EC body can be designed in various alloys
In its standard version, the LLB-EC sampling valves is made from stainless steel. It is also available in Hastelloy®
1.4404 / 316L 2.4602 / C22
Vent hole principle
The venting hole fitted to each LLB-EC sampling valve prevents overpressure and explosions.
It can be connected in different ways
Vent hole principle
The vent hole in our sampling systems prevents overpressure in the container and allows for the recovery of toxic gases.
NITROGEN RINSING THROUGH THE SPINDLE
If bottle rinsing is required, the LLB-EC samplers can be configured with the nitrogen flushing option
NITROGEN RINSING THROUGH THE SPINDLE
If bottle rinsing is required, the ECB samplers can be configured with the nitrogen flushing option

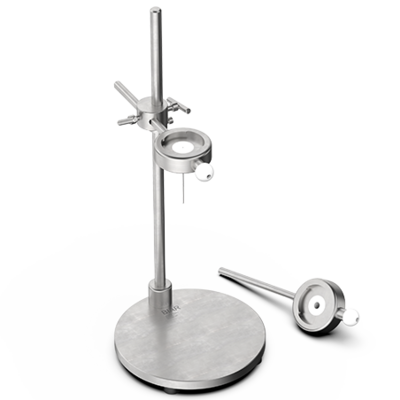

ACCESSORIES DESIGNED FOR THE LLB-EC
LLB-EC In-line sampling valves are compatible with a wide range of accessories
Inline sampling valves
BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
