ESR

  • Inline sampling valve
  • Wafer type
  • For large diameter pipes
  • No dead zone
Material1.4404 / 316LPTFE
PressuresPN 0 ANSI 0#
Temperatures0°C / 0°C0°F / 0°F

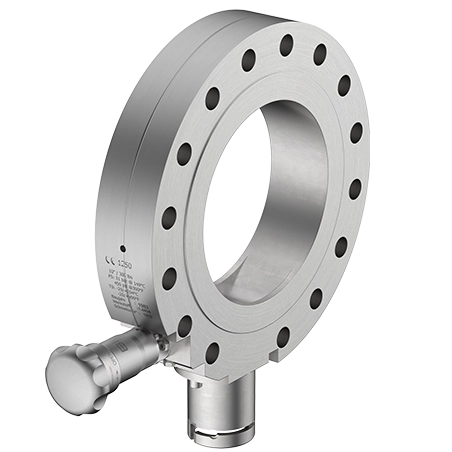

Specially designed for large-diameter pipes, the ESR  wafer type sampling valve  is combined with a dedicated 250 ml container. Its robustness and exclusive use with a container ensure the safety of the sampling points, guaranteeing total tightness - an essential requirement for pipes of this size. The sandwich design not only takes up less space, but also makes the system much easier to install and use.

TECHNICAL DETAILS

Illustrative drawing of an ESR sampler with VMB magic handwheel actuator and 250 ml container.

Dimensions in mm
Your specificities
Standard
  • DIN
  • ANSI
Class
  • 16
  • 25
  • 300
NrArticleNPSBDkn x d LH
032730004'107.12542006 x 22.2271237
015070008'202.738933011 x 25.4312287
0150690210'254.544538715 x 27327309
0147340114''34658551415 x 31.8379358
NrArticleDNBDkn x d LH
0352390020021034026811x22270215
NrArticleDNBDkn x d LH
02841300300316.948543015x30327255.5
Pressures and temperatures

Detailed documentation

Guides d'utilisation

The ESR sampling valve can be configured as required, with different sealing.

Standard Stem Gasket

Simple stuffing box

HP Stem Gasket

Double Stuffing Box

Stellite Stem Gasket

Bellows Seal

Because of its size, the ESR sampling valve is made entirely of stainless steel.

1.4404 / 316LZirconiumTitaniumNickelInconel®Other nickel alloysOther austeno-ferritic stainless steelsOther materials

The ESR sampler is operated by a handwheel, providing highly accurate flow management during filling.

Magic Hand Wheel - VMB

Magic hand wheel

Accessories

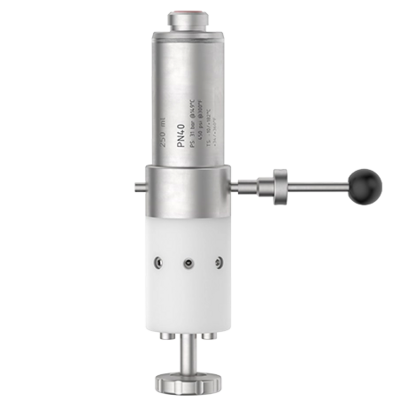

ESR valves can be combined with a dedicated piston syringe.

Piston seringue ESR

Piston seringue ESR

Standard product range

BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
