CLR
- Sampling valve
- Monobloc
- Flangeless
- In special materials
Material Zirconium Titanium Nickel Inconel® Other nickel alloys Other austeno-ferritic stainless steels Other materials
When the use of special materials such as zirconium, titanium, Inconel or Nickel is required, the CLR design is ideally suited. Its seamless design employs rare materials suited to highly corrosive environments, while also guaranteeing the purity and hygiene essential in food and pharmaceutical environments. What's more, the CLR is built to withstand extremely high pressures.
TECHNICAL DETAILS

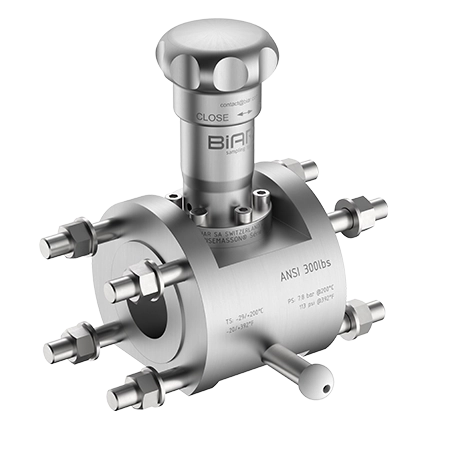

Illustrative drawing of a CLR sampling valve with magic handwheel-type actuator.
Dimensions in mm
Your specificities
Standard
- ANSI
Class
- 150
- 300
| NrArticle | NPS | D | d1 | h1 | h2 | K | n x d |
|---|---|---|---|---|---|---|---|
| 05503500 | 1/2 | 95.7 | 17.3 | 26.6 | 26.6 | 60.5 | 4 x M14 |
| 05244600 | 3/4 | 98 | 22.3 | 29.2 | 29.2 | 69.8 | 4 x M14 |
| 05373200 | 1 | 108 | 28.5 | 32.2 | 32.2 | 79.2 | 4 x M14 |
| 04628500 | 2 | 150 | 54.5 | 45.3 | 45.3 | 120.6 | 4 x M16 |
| NrArticle | NPS | D | d1 | h1 | h2 | K | n x d |
|---|---|---|---|---|---|---|---|
| 05504500 | 1/2 | 95.7 | 17.3 | 26.6 | 26.6 | 66.5 | 4 x M14 |
| 05222200 | 3/4 | 117 | 22.3 | 29.2 | 29.2 | 82.6 | 4 x M16 |
| 05471100 | 1 | 136 | 28.5 | 32.2 | 32.2 | 93.2 | 4 x M16 |
| 04659100 | 2 | 165 | 54.5 | 45.3 | 45.3 | 127 | 8 x M16 |
Pressures and temperatures
The construction of the CLR allows it to be manufactured in a wide range of materials such as zirconium, titanium, Inconel and nickel.
Zirconium Titanium Other nickel alloys Other austeno-ferritic stainless steels Other materials
Inline sampling valves
BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
