Optiflow

  • Stainless Steel top of reactor sampling system
  • From the top
  • Without cannula
  • Pneumo-magnetic
Material1.4404 / 316L2.4602 / C22
PressuresPN 6 / 40ANSI 100# / 300#
Temperatures-40°C / 200°C-40°F / 392°F

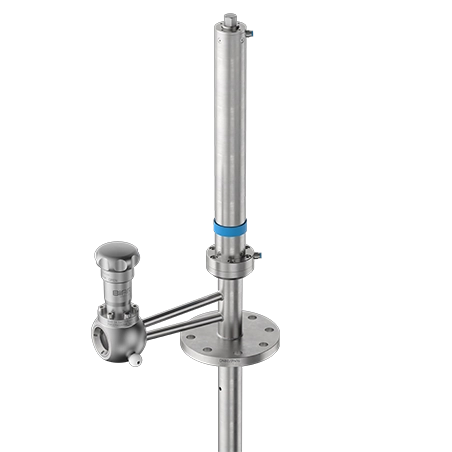

Available in stainless steel or Hastelloy, the Optiflow enables safe, simple sampling from the top of the reactor. Its unique magneto-pneumatic drive ensures a continuous flow of product for 100% reliable sampling. It can be attached to a tube to sample chemicals under conditions of viscosity up to 2000 cP, pressures from -1 to 16 bar and temperatures from -40 °C to +200 °C (standard version) or -80 °C to +200 °C (with low temperature design). It is fitted with a modular PRISEMASSON valve, making it compatible with most BIAR accessories. The sight glass on the sampling valve shows how the sample is being taken. It is cleaned from the top of the piston. ATEX certified, it operates at the touch of a button, making it extremely safe and intuitive to use.

TECHNICAL SPECIFICATIONS

Indicative drawing of top of reactor sampling system Optiflow featuring a sampling valve fitted with a VMB magic handwheel actuator

Dimensions in mm
Your specificities
Standard
  • DIN
  • ANSI
Class
  • 16
  • 150
NrArticleDNDip tubePNl1h1h2d1DknxdTemp.°CKg
05288400≥DN50(min)1m - (max)3m6-16258703 5548,31401004x14-40 - +200°C [25 kg, 35 kg]
NrArticleNPSDip tubePNl1h1h2d1DknxdTemp.°CKg
05288400≥2" (min)1m - (max)3m6-16258703 5548,31401004x14-40 à +392°F [25 kg, 35 kg]
Pressures and temperatures
TS °C -40°/+200°
PS bar -1 /16
TS °F -40°/392°
PS psi 14/232

The sampling valve on each Optiflow top of reactor sampling system can be configured according to production and sampling requirements.

Possible sealings for the valve section of an Optiflow sampling system

The sampling valve sealing on the Optiflow sampling system are modular

Standard Stem Gasket

Simple stuffing box

HP Stem Gasket

Double Stuffing Box

Stellite Stem Gasket

Bellows Seal

Material

Optiflow comes in various material options

1.4404 / 316L2.4602 / C22

Possible actuators for the Optiflow sampling valve

The sampling valve actuators on each Optiflow can be modulated according to requirements

Magic Hand Wheel - VMB

Pneumatic actuator - CPB

Spring to Close hand lever - RPS

Cooling fins

Optiflow operating principle

How the optiflow and its pneumo-magnetic drive work

The Optiflow sampling valve is compatible with a large number of accessories

FAB adapter

Splash guard adapter FAD

Bottles

Adjustable plate support SAB

Bottle heat protection

SCB bottle holder

Heat protection box BPB

Heat protection box BPI

Safety cabinets

Needle adapter ACB - ACY

BIAR range of reactor sampling systems

BIAR provides top-of-reactor sampling solutions within our product offerings.

Stainless steel

Optiflow
