Needle adapter ACB - ACY
- Needle adapters
- For laboratory septum bottles
- Under multifunction valves
- All assemblies
Material1.4404 / 316LPTFEOther materials
The needle adapter makes sampling safe and easy, even in harsh chemical environments. The use of bottles fitted with a septum avoids direct contact with gases and liquids. Designed to work in perfect synergy with BIAR multifunction valves, this adapter is compatible with 50 ml and 1000 ml septum bottles. Its needles are adaptable in terms of size and material to suit the liquids being sampled and the specific production parameters. In addition, it can be easily integrated into nitrogen flushing systems, allowing the bottle to be inertised and cleaned during the sampling process.

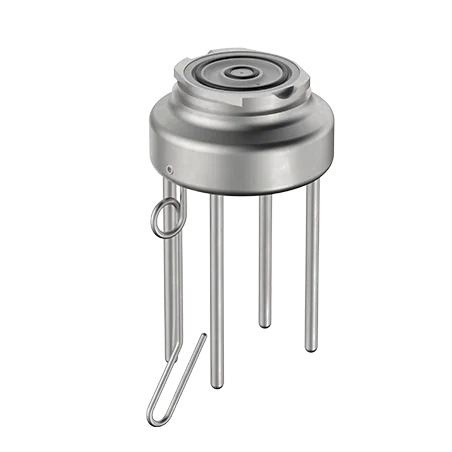

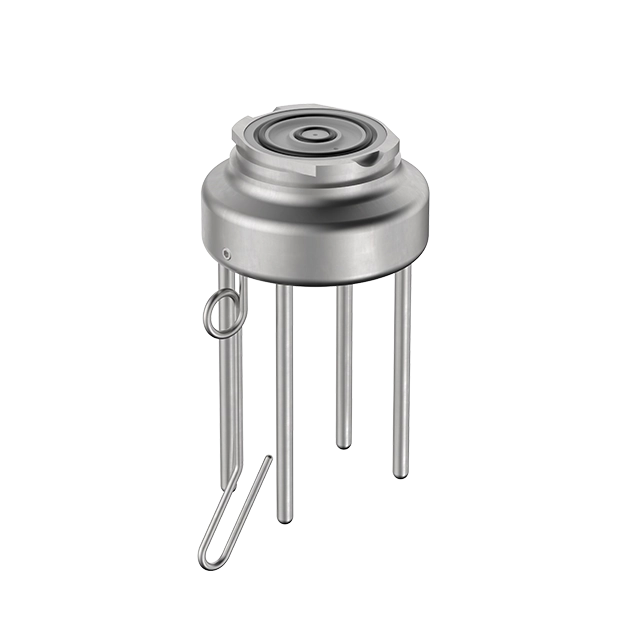

NEEDLE ADAPTER (ACB)
When it comes to quick connect valves, the ACB needle adaptor stands out as an essential tool. This unassuming yet highly effective device, when used in conjunction with a septum bottle, ensures completely emission-free sampling. Its affordability belies the invaluable benefits it provides, particularly in enhancing operator safety.
Key benefits
- Enhanced Operator Safety: safeguarding operators from potential exposure.
- Reduced Cross-Contamination and maintaining the integrity of samples.
- Compatible with all BIAR quick connect valves, ensuring versatility and ease of use.
- Streamlined Sampling Process: Sampling becomes an easy task withount the need to cap the bottle
- The ACB provides a cost-effective yet reliable solution for emission-free sampling.
- The use of pencil-point needles ensures the preservation of septum integrity.
Modularity
- Different sizes available as standard for bottles from 25 ml to 1000 ml
- Suitable also for specific bottles
- Modular diameters and materials to suit sampling requirements
- Multiple ACB seals are possible
- Needles are easy to replace
Illustrative drawing of an ACB adapter under an MLB valve
ACB with nitrogen rinsing

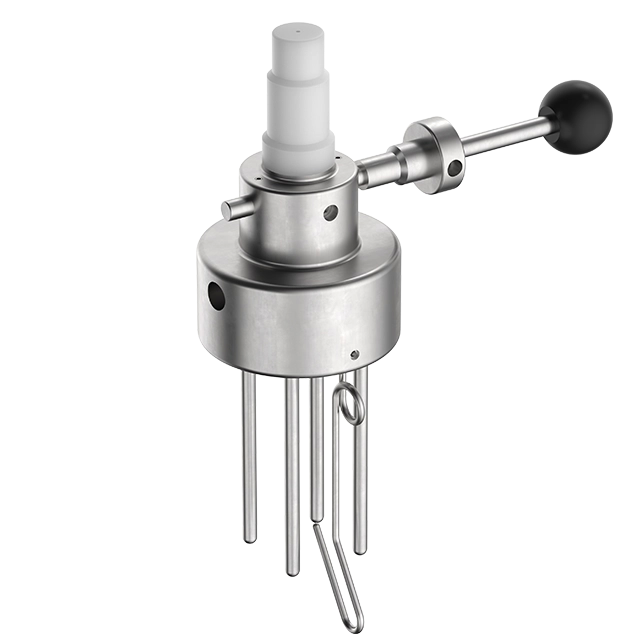

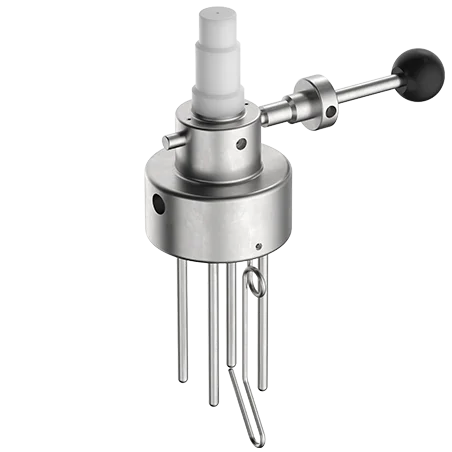

Needle adapter (ACY)
For wafer-type flanged valves with bayonet connection
Sampling with an ACY needle adapter and septum bottle guarantees emission-free sampling. Compatible with all bayonet connection valves, the ACY ensures operator safety and sample quality while providing a cost-effective solution.
Key benefits
- Ensures safe sampling and operator safety.
- Provides a safe solution at an affordable cost.
- Reduces the risk of cross-contamination.
- Compatible with all BIAR flanged valves with bayonet connections
- Simplifies and speeds up sampling, eliminating the need for an additional cap.
- Pencil-point needles preserve septum integrity.
Modularity
- Various standard sizes available for bottles from 25 ml to 1000 ml.
- Adapter easily adjusts to fit specific bottles or flasks.
- Diameters and materials can be adapted to suit sampling requirements.
- Several CYA sealing options are available.
- Needles can be easily replaced.
Illustrative drawing of an ACY adapter under an wafer type valve - EB
Standard product range
BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
