SAB adjustable plate support technical details

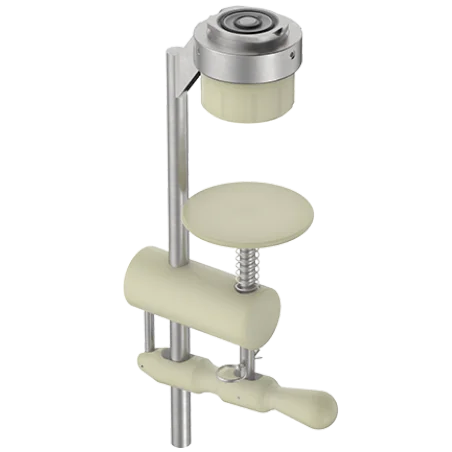

Indicative drawing of an SAB adjustable plate support installed under an MLB sample tap with a VMB "magic wheel" type actuator.
Adjustable plate support SAB
- Adjustable plate support
- With threadless or needle adapter
- For laboratory bottles
- Under multifunction valves, all mountings
Material1.4301 / 304PFAPPOther materials
The SAB is the ideal solution for sampling points where the risks are limited and where flexibility is required in terms of changing bottles (different diameters, shapes and sizes). In the event of excess pressure, this device retains the container, preventing any risk of explosion. It can be easily installed under multifunction quick-connect valves and is compatible with all bottle types up to and including GL45 thread. It can be combined with a BSA-type cap that screws onto the support to secure the sampling point after sampling. Thanks to the Adjustable plate support SAB, the bottle is quick and easy to install.
FURTHER ACCESSORIES
Standard product range
BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
