Technical details of an SCB bottle holder
Indicative drawing of an SCB adapter for a 100ml bottle installed under a sampling valve with a VMB "magic wheel" type actuator.
| Volume | Dimensions in mm (h) |
|---|---|
| 50 | 140 |
| 100 | 150 |
| 250 | 200 |
| 500 | 230 |
| 1000 | 300 |

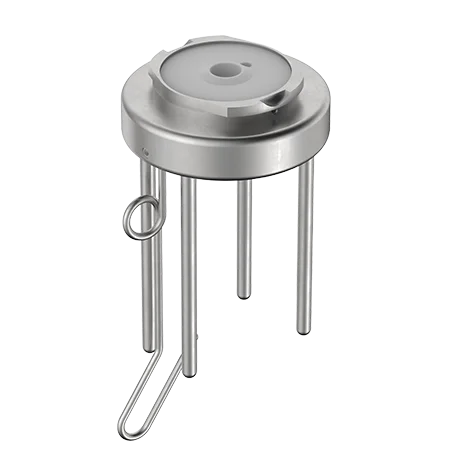

SCB bottle holder
- Bottle holder "Click" without thread
- For laboratory bottles
- Under multifunction valves
- Horizontal mounting
Material1.4301 / 304PTFEOther materials
Temperatures-40°C / 200°C-40°F / 392°F
Designed to accommodate a variety of vials of different diameters and shapes, the "click" bottle holder provides an optimum solution for sampling points with a moderate level of security and requiring greater adaptability. The SCB provides a robust hold for the container, eliminating the risk of explosion of the unscrewed vial in the event of overpressure. It is quick and easy to install under quick-connect multifunction valves.
